Fire safety

SITEPROTECT Wireless Alarm System



Fire safety

Welcome to SITEPROTECT, formerly known as Cygnus

A fire alarm protects your site, so from now on we are renaming our existing temporary Cygnus fire alarm system to SITEPROTECT. It is purely a name change to align with our business objectives and future plans.

The name may be different, but the product is still the reliable system that it always has been.

The SITEPROTECT Wireless Alarm System, manufactured by Bull Products, sets the benchmark in innovation in wireless emergency fire, first aid and intruder alarms for construction sites. Designed for performance and reliability and utilising patented Cygnus technology to power the devices, SITEPROTECT is the most adaptable temporary mesh fire alarm system for use in the construction industry.

SITEPROTECT can link up to 480 individual devices in 15 different zones, including fire alarm call points, first aid alert points, smoke detectors, heat detectors, combined fire call point/first aid alert alarm and interface units.

See SiteProtect wireless alarms product list Read/download the SiteProtect Wireless Alarm System product PDF
None

CYG6

SITEPROTECT Base Panel (32 addresses)


The base panel has been developed as a small site system panel and can used to capture data from a maximum of 32 devices situated around a site.  The base panel has limited software and functionality compared with the CYG1 SiteProtect control panel but is the perfect solution for smaller construction sites.

Find out more
None

CYG1

SITEPROTECT Control Panel (480 addresses)


The control panel is an optional element of any SITEPROTECT system, used to capture data from up to 480 devices situated around a site. The control panel is mains powered but has its own internal rechargeable battery power source, which fully charged, will last four weeks. The panel also includes an evacuate site function and is also used to switch intruder sensors on or off.

Find out more
None

CYG2

SITEPROTECT Fire Call Point Alarm

The SITEPROTECT fire call point alarm operates using a single battery pack and can be used externally. This radio alarm device also works as a standalone alarm unit. The device is IP65 rated  has a 110 decibel sounder and an LED beacon for visual alerts.  Activating a call point results in a site wide alert.
The CYG2PIR is the SITEPROTECT Fire Call Point Alarm with PIR intruder sensor.

Find out more
None

CYG2/85DB

SITEPROTECT Fire Call Point Alarm 85 Decibel

The SITEPROTECT 85 decibel call point alarm is IP65 rated, so suitable for external use.  These devices are built with a quieter sounder for areas where a 110 decibel level is inappropriate. This device does not include a flashing beacon.
The CYG2/85DBPIR SITEPROTECT Fire Call Point Alarm 85dB (no beacon) c/w PIR intruder sensor

Find out more
None

CYG2F

SITEPROTECT Fire Call Point and First Aid Alarm


The SITEPROTECT fire call point and first aid alarm combination is IP65 rated and has all features of the CYG2 alarm but also has alert functionality for first aid emergencies. The CYG2FPIR SITEPROTECT Fire Call Point and First Aid Alert Alarm c/w PIR intruder sensor

Find out more
None

CYG5

SITEPROTECT First Aid Alert Point

Once triggered, the IP65-rated SITEPROTECT first aid alert point alert beeps intermittently every eight seconds at 85 decibels. The control panel notifies the user of the exact location within a zone where the alarm has been triggered for quick identification of the search area.
The CYG5PIR SITEPROTECT First Aid Call Point Alarm c/w PIR intruder sensor

Find out more
None

CYG3L

SITEPROTECT Heat Detector

SITEPROTECT heat detectors provide 24/7 essential protection on all types of temporary sites. The detectors, with an 85 decibel sounder, work in the radio mesh to transmit and receive radio messages from other alarms to help site-wide radio performance. Thermistor technology registers changes in temperatures and, if necessary, activates the alarm. GSM functionality means your site is protected 24 hours a day, seven days a week.
The CYG3LPIR SITEPROTECT Heat Detector c/w PIR Intruder Sensor

Find out more
None

CYG4L

SITEPROTECT Smoke Detector

SITEPROTECT smoke detectors have optical smoke sensors that provide essential detection in and out of working hours and are particularly effective in site accommodation units. The detector activates the alarm and 85 decibel sounder when a preset threshold of smoke penetrates  the sensing chamber.
The CYG4LPIR SITEPROTECT Smoke Detector c/w PIR intruder sensor


Find out more
None

PIR

PIR Intruder Sensor

The patented PIR intruder functionality is available on all SITEPROTECT alarms to utilise fire, first aid alarms and detectors for intruder activations. PIR works with the CYG1-GSM/GPRS control panel and sends users an SMS text alert should an intrusion occur.

Find out more
None

CYGIOU

SITEPROTECT Input/Output Interface

The SITEPROTECT input/output unit interfaces with other fire systems, turnstile gate entry systems, and door release systems. In the case of an alarm activation, the interface triggers the door release and deactivates the turnstile for quick evacuation.

Find out more
None

CAB01-FTH

Linear Heat Cable

The linear heat cable is a solution for fire protection on scaffolding. If a fire occurs, the core and insulation of the linear heat cable are designed to burn and fuse at a pre-determined 65ºC, 85ºC or 100ºC, which causes a short circuit. The linear heat cable is cleverly integrated with Bull Products’ SITEPROTECT Wireless System, which then triggers the alarm, and alerts safety managers to the incident, including out of hours.

Find out more
None

CYGLDAP01 | CYGLDA01

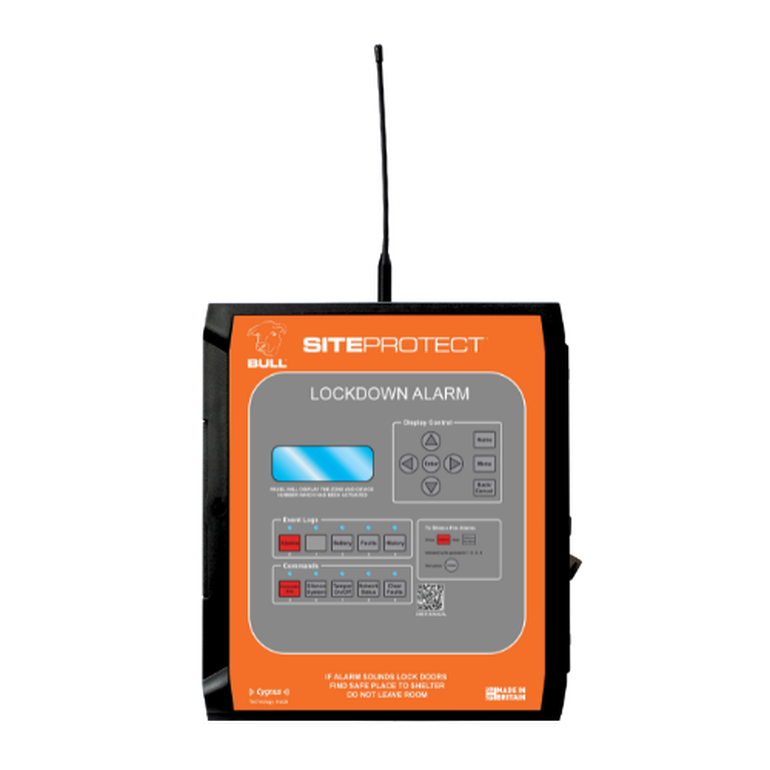

SITEPROTECT Lockdown Panel and Alarm

The SITEPROTECT Lockdown alarm system has been developed primarily for the education market to protect and warn of an intruder or other critical event. The system comprises of a control panel and remote devices that connect to each other through a wireless mesh network. Alarm devices can be located in each teaching area, so when the alarm is activated the staff and pupils will follow the lockdown procedure. An alarm device also has a call point which can be activated by the staff member in any area just like a fire call point system.
The lockdown alarm control panel is an optional element to notify a responsible person of an active alarm, to quickly identify the location of the activation and alert the authorities.
The system can be interfaced with the premises public address system using a SITEPROTECT Input/Output device.
Further features can be added such as GSM notifications using a SiteProtect Fire panel (CYG1) and Autodialler (AUTODI07-C) which can communicate an emergency to 50 users.

Find out more
